Retail Steel Buildings: Design, Fabrication, and Procurement Solutions
When retail developers, franchise operators, and commercial real estate investors search for commercial steel building contractors, they need steel building solutions that combine rapid construction, architectural flexibility, and long-term operational efficiency. Retail steel buildings serve a distinct market segment that requires specific structural design considerations-different from industrial warehouses or agricultural barns. Jidian Construction Materials Co., Ltd. manufactures custom-engineered retail steel buildings from its facility in Xiamen, Fujian, China. With 360,000 tons of annual steel capacity and the China Steel Structure Manufacturing Special Level Qualification, Jidian delivers retail spaces including shopping centers, standalone retail stores, commercial complexes, and mixed-use developments. The company has completed 2,000+ projects across 50+ countries, providing structural design, factory fabrication, shipping, and on-site supervision for retail developments ranging from 500 m² standalone stores to 50,000 m² multi-level shopping centers.
Why Steel is the Preferred Material for Retail Buildings
Steel construction offers specific advantages for retail buildings that make it the preferred choice over conventional concrete construction. The benefits are both structural and commercial:
| Factor | Steel Construction | Conventional Concrete |
|---|---|---|
| Construction speed | 45–75 day erection for 5,000 m² | 120–180 days |
| Column grid flexibility | 9–15m open retail spans | 6–9m limited by beam depth |
| Tenant layout changes | Non-load-bearing partitions, easily reconfigured | Structural walls limit changes |
| Floor-to-ceiling height | 3.5–5m, flexible | Limited by beam depth |
| Roof systems | Long-span atrium trusses for skylights | Limited spans, heavier structure |
| Earlier tenant occupancy | Yes, 50% faster construction | No, longer curing time |
For retail developers, faster construction means earlier tenant occupancy and faster return on investment. The 9–15m column grid allows open retail floor plans that accommodate display areas, circulation, and flexible tenant partitioning.
Retail Steel Building Product Range
Jidian manufactures several types of retail steel buildings, each engineered for specific retail formats:
- Shopping center: 2–8 story steel frame with 9–15m open retail column grid, long-span atrium trusses for dramatic central skylights, curtain wall and stone facade integration, escalator and elevator core pre-engineering. Key product: Modern steel structure shopping center.

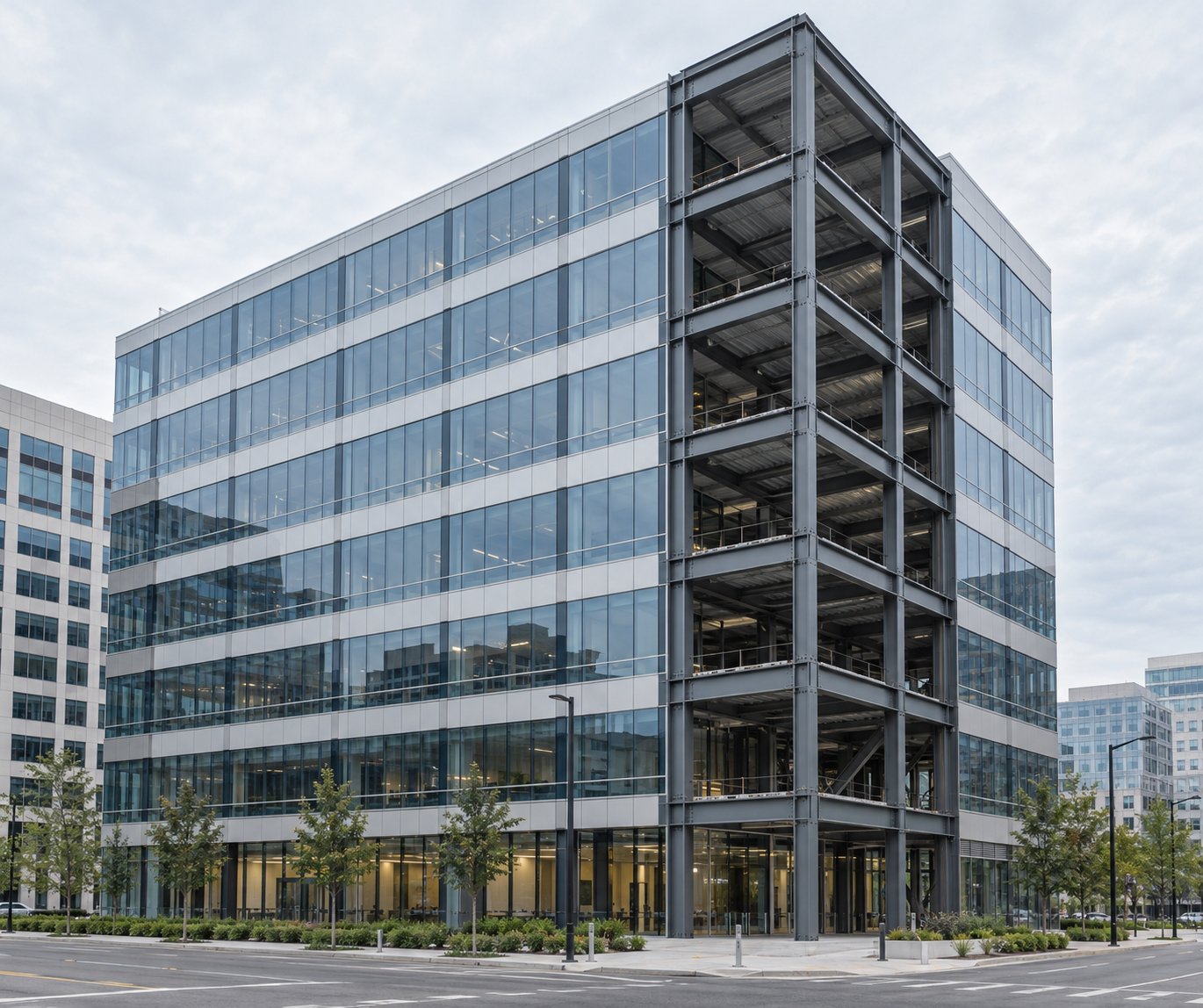

- Commercial complex: Mixed-use steel frame combining retail, office, and entertainment spaces. Box column construction with composite floor decks. Key product: Modern steel structure commercial building.
- Standalone retail store: Single-story portal frame with 15–30m clear span, 4–6m eave height. Suitable for big-box retail, auto showrooms, and franchise locations.

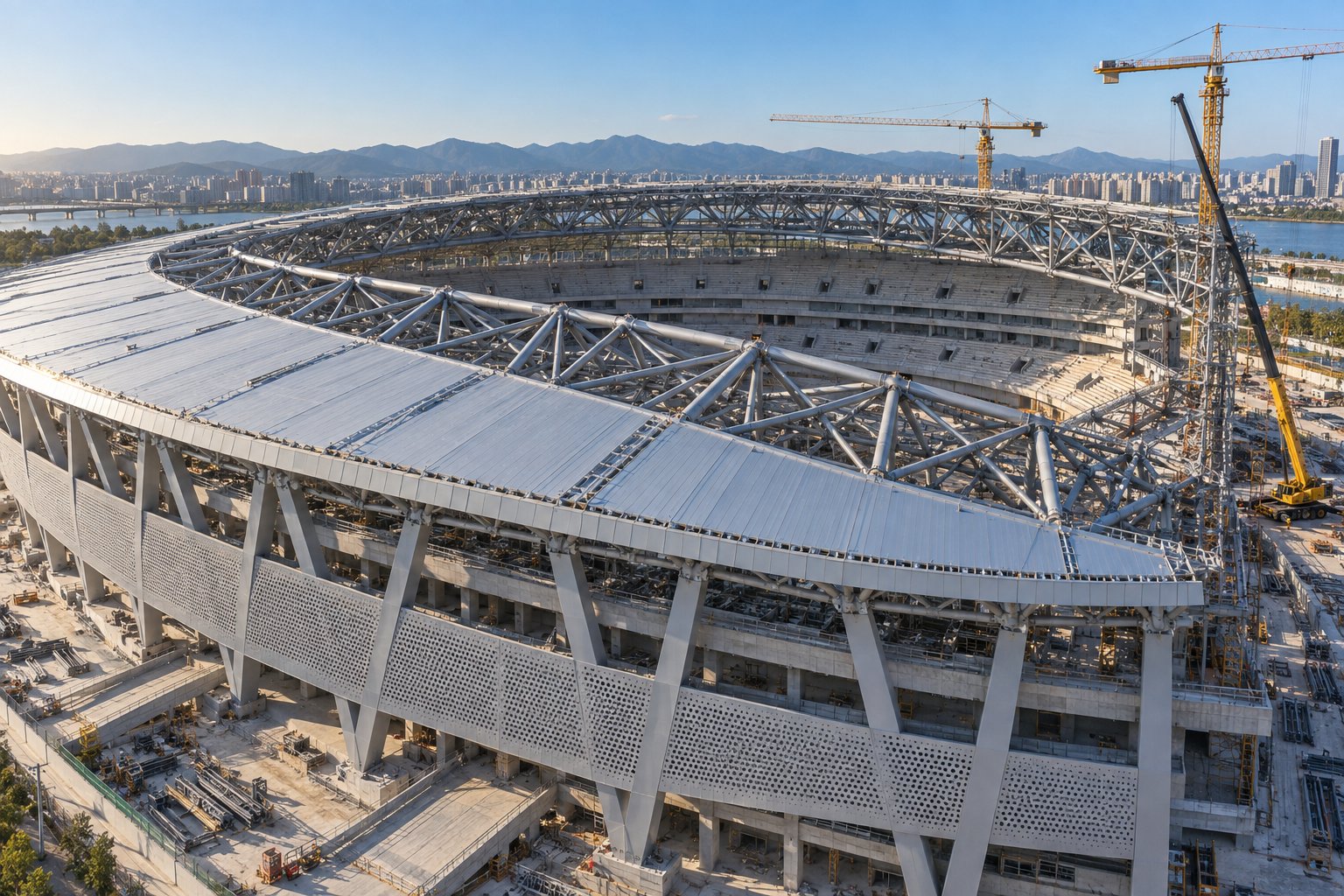

- Stadium and event venue: Long-span truss structure for sports arenas, concert venues, and exhibition halls. Key product: Large prefabricate steel structure stadium.
Each building type is custom-engineered to your retail format, site constraints, branding requirements, and local building code. Specify your retail concept during inquiry for tailored structural design.
Shopping Center Steel Structure: Engineering for Retail Excellence
The Modern steel structure shopping center represents Jidian's flagship retail building product. Key engineering features include: 2–8 story steel frame with 9–15m open retail column grid (maximizing retail floor area and display flexibility), long-span atrium trusses (enabling dramatic central skylights and open sightlines across multiple floors), curtain wall and stone facade integration (structural connection points pre-engineered for architectural cladding systems), escalator and elevator core pre-engineering (structural openings and support platforms coordinated with equipment suppliers), and seismic Grade 8 ductile connections (energy-dissipating moment connections for occupant safety). The 45–75 day erection timeline enables earlier tenant occupancy compared to 6–12 months for conventional concrete construction. This is particularly valuable for retail developers who need to open stores within budget cycles or seasonal shopping periods. The steel frame is designed for future tenant reconfiguration-interior partitions are non-load-bearing, allowing layout changes without structural modification.
Structural Design Parameters for Retail Steel Buildings
Retail steel buildings require specific structural design parameters that differ from industrial or agricultural buildings:
- Live load: Retail floor live load 4.0–5.0 kN/m² (higher than office buildings due to display fixtures, storage, and crowd loading per ASCE 7 or local code).
- Column grid: 9–15m for open retail floor plans (wider than industrial buildings to maximize display area and circulation).
- Floor-to-floor height: 3.5–5.0m for retail ceiling height requirements, HVAC duct clearance, and signage.
- Atrium design: Long-span trusses supporting skylight loads, with deflection control for glass panels.
- Seismic design: Grade 8 with ductile connections, critical for public assembly buildings with high occupant load.
- Fire protection: Fire-rated enclosure systems (rock wool panels A1 class per GB 8624) and intumescent coating options for fire-resistance ratings of 1–2 hours.
Provide your retail format, site dimensions, tenant requirements, and local building code during inquiry for custom structural design.
Fabrication Precision and Equipment for Retail Projects
Retail steel buildings demand higher fabrication precision than industrial buildings because architectural features-skylights, curtain walls, escalator openings-require tight tolerance control. Jidian fabricates all components to ±2mm tolerance using equipment imported from Germany, Italy, and Japan. The cross-column production line welds H-section columns and beams up to 1,500mm web height. The European longitudinal box production line manufactures welded box columns for multi-story retail buildings. CNC plasma cutting provides ±1mm plate preparation accuracy. The AMADA secondary processing line drills bolt holes to ±2mm positioning accuracy. This precision ensures that when components arrive on site, curtain wall mullions align, escalator openings match, and skylight trusses fit exactly as designed-no field reaming or modification required. For retail projects where architectural precision directly affects the building's appearance and weather-tightness, this fabrication quality is essential.
Facade Integration for Retail Buildings
Retail buildings require architectural facades that create visual impact and brand identity. Jidian pre-engineers the steel frame for multiple facade systems: glass curtain wall (connection points for mullion-transom or unitized systems, with structural support for large-format glass panels), aluminum composite panels (sub-frame attachment points for rainscreen systems with custom colors and finishes), stone cladding (structural support brackets for granite or marble panels, with load paths engineered into the frame), and signage support structures (integrated structural supports for building-mounted signage and digital displays). The structural engineering team coordinates connection details with your facade supplier and signage contractor. Specify your facade system, signage requirements, and architectural concept during the design phase for coordinated structural integration.
Acoustic and Thermal Performance in Retail Buildings
Retail buildings require acoustic and thermal performance that enhances the shopping experience. Jidian's steel frame accommodates: acoustic floor systems (steel truss floor decks with concrete topping achieving airborne sound insulation ≥50 dB between floors-important for multi-level retail with food courts or cinemas above retail spaces), thermal insulation (PU/EPS sandwich panels 50–100mm for exterior walls and roofs, reducing HVAC energy costs by 20–30%), and vibration control (floor systems designed for footfall vibration comfort per ISO 10137, preventing uncomfortable vibrations in open retail areas). For retail buildings with cinema complexes, entertainment zones, or food courts, these acoustic and thermal features are essential for tenant satisfaction and customer comfort.
Shipping, Trade Terms, and Payment for Retail Projects
Standard shipments use 40ft OT or 40ft HQ containers from Xiamen port. Shipping from Xiamen to key destinations: Southeast Asia 7–14 days, Middle East 18–28 days, East Africa 25–35 days, West Africa 35–45 days, Latin America West Coast 30–40 days, Australia/New Zealand 18–28 days. Trade terms: FOB Xiamen, CIF destination port, or DDP door delivery. For DDP shipments, Jidian handles customs clearance, duties, and inland transportation to your site. Payment terms: T/T (30% deposit, 70% before shipment) or L/C at sight. Alibaba Trade Assurance supported for buyer protection. For retail developers building multiple locations, Jidian offers volume-based pricing and dedicated production scheduling.
Common Risks in Retail Steel Building Projects
- Inadequate column grid planning: Retail floor plans require 9–15m column grids for display flexibility. Narrower grids create column obstructions that reduce sellable floor area. Confirm the column grid during design.
- Facade coordination gaps: Steel frame and facade systems must be coordinated. Verify the manufacturer designs connection points for your specified facade system during structural design, not after fabrication.
- Insufficient acoustic design: Multi-level retail with food courts or cinemas requires acoustic floor systems. Verify airborne sound insulation ≥50 dB between floors.
- Missing code compliance: Retail buildings are public assembly buildings with specific fire and seismic requirements. Confirm the manufacturer engineers to your local building code.
- Tolerance failures: Retail buildings with curtain walls require tighter fabrication tolerances. Verify ±2mm bolt-hole positioning accuracy for component alignment.
FAQ
Q: What types of retail steel buildings can you manufacture?
A: Shopping centers (2–8 floors, 9–15m column grid), commercial complexes, standalone retail stores, stadiums, and event venues. Each is custom-engineered to your retail format and site requirements.
Q: What column grid spacing is available for retail buildings?
A: 9–15m open retail column grid, maximizing display area and circulation. This is wider than industrial building grids to accommodate retail floor plan requirements.
Q: Can you integrate curtain walls and stone cladding into the steel frame?
A: Yes. The steel frame is pre-engineered with connection points for glass curtain walls, aluminum panels, stone cladding, and signage structures. Specify your facade system during design.
Q: What floor live load can retail steel buildings support?
A: 4.0–5.0 kN/m² for retail floors, higher than office buildings. This accommodates display fixtures, storage, and crowd loading per ASCE 7 or local code.
Q: How long does construction take for a retail steel building?
A: Fabrication 30–45 days, erection 45–75 days for a 5,000 m² shopping center. This is approximately 50% faster than conventional concrete construction, enabling earlier tenant occupancy.
Q: Do you provide acoustic floor systems for multi-level retail?
A: Yes. Steel truss floor decks with concrete topping achieve airborne sound insulation ≥50 dB between floors, suitable for food courts or cinemas above retail spaces.
Q: What seismic design is included?
A: Grade 8 seismic design with ductile moment connections and vertical bracing systems. We can also comply with AISC 341 or Eurocode EN 1998 for international projects.
Q: Can you pre-engineer escalator and elevator openings?
A: Yes. Structural openings, support platforms, and equipment load paths are coordinated with escalator and elevator suppliers during the design phase.
Q: Do you provide on-site supervision for retail building projects?
A: For structures above 2,000 m², we dispatch qualified engineers to supervise erection. Assembly drawings, connection sequence videos, and remote support are provided for all projects.
Q: What documentation is included for building permit applications?
A: Mill certificates, weld maps, UT/RT/MT NDT reports, coating thickness records, structural calculations, shop drawings, and assembly drawings. CE marking documentation available for EU projects.
