Modular steel girder bridge or arch bridge
Highlights
- Spans 20-80m, highway Grade-I / AASHTO HS-20 loading
- Bridge steel Q345qC/Q370qC per GB/T 714, -20°C toughness
- Modular segments fit 40ft containers for economical shipping
- Thermal spray zinc + epoxy + PU topcoat, 30+ year C4/C5 protection
- 100% UT on butt welds, Italy welding qualification for CE
- 7-15 day on-site erection for typical 40m span
Specifications
| Brand | Jidian Construction Materials Co., Ltd. |
|---|---|
| Product origin | Xiamen, Fujian, China |
| Structure type | Box girder / truss / arch bridge |
| Bridge steel grade | Q345qC / Q370qC (GB/T 714) |
| Span range | 20-80m single span |
| Design load | Highway Grade-I (China) / HS-20 (AASHTO) |
| Fatigue category | ISO 10721 Category 71-90 |
| Anti-corrosion | Thermal spray zinc ≥150μm + epoxy + PU (ISO 12944 C4/C5) |
| Welding standard | ISO 15614-1 procedure, ISO 9606 welder qualification |
| NDT | 100% UT on butt welds, 10% RT spot check, 100% MT on fillets |
| Design life | 50-100 years structural, 30+ years coating |
| Delivery time | 30-45 days after drawing confirmation |
| Supply capacity | 360,000 tons/year |
Product Detail
Bridge Infrastructure Pain Points & Modular Steel Solutionsions

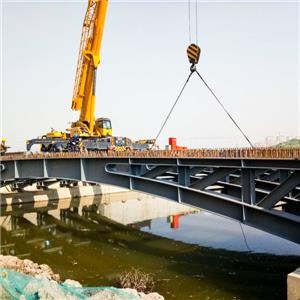

Rural and regional infrastructure projects frequently face bridge spans that are too long for standard precast concrete beams, yet budgets too tight for custom cast-in-place construction. Modular steel girder and arch bridges fill this gap efficiently. Our box-section and truss-section girders-fabricated from Q345qC/Q370qC bridge steel per GB/T 714-are designed for spans of 20 to 80 meters, carrying highway loads up to Grade-I (China) or HS-20 (AASHTO). Components are shop-fabricated in transportable modules (max 12m length per segment for container shipping), then bolted or field-welded on site. A typical 40m single-span girder bridge can be erected in 7-15 days after foundation completion, compared to 60-90 days for cast-in-place concrete. The modular approach also enables future span extension or bridge relocation if river alignments change.
Product Advantages
• Bridge-grade steel: Q345qC/Q370qC per GB/T 714, with guaranteed notch toughness at -20°C for cold-region applications.
• Box girder & truss optionsions: Single-box, twin-box, or Pratt/Warren truss configurations engineered to your span, load, and aesthetic requirements.
• Modular shipping: Segments limited to 12m length and 3.2m width fit standard 40ft containers, drastically reducing ocean freight versus monolithic concrete beams.
• Anti-corrosion system: Thermal spray zinc (≥150μm) + epoxy sealer + polyurethane topcoat, achieving 30+ year maintenance-free service in C4/C5 marine environments per ISO 12944.
• Fatigue-rated connections: All bolted connections designed per ISO 10721 with Category 71-90 fatigue detail classification for highway loading.

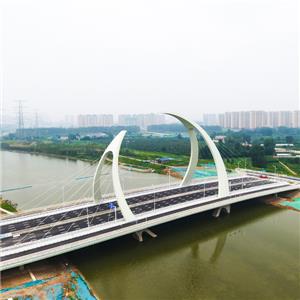

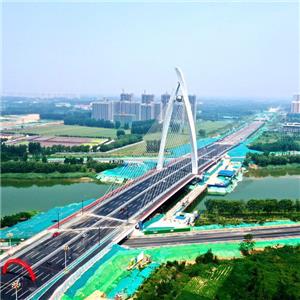

• Architectural aesthetics: Steel arch and truss configurations offer visual landmarks-combining structural efficiency with architectural expression for civic infrastructure.
Welding Qualification & Non-Destructive Testingting
Bridge fabrication demands the highest welding standards. Our shop holds the China Steel Structure Manufacturing Special Level Qualification-the highest in the field. Welding procedures are qualified to ISO 15614-1, and all welders carry ISO 9606 certifications. For bridge girders, 100% of full-penetration butt welds undergo ultrasonic testing (UT) per GB/T 11345, with 10% radiographic testing (RT) spot checks. Magnetic particle inspection (MT) is applied to all fillet welds at fatigue-critical details. We also hold the Italy Welding Procedure Qualification Certificate, enabling CE-marked bridge components for European projects. Each bridge shipment includes a complete material traceability dossier: mill certificates, weld maps, NDT reports, and coating thickness records.
About Jidian Construction Materials Co., Ltd.
Founded in 2012, Jidian Construction Materials Co., Ltd. is a leading steel structure manufacturer headquartered in Xiamen, Fujian, China, with over 12 years of industry experience. We are a Vice President unit of the China Steel Structure Association. Our production facility operates advanced steel structure production lines, delivering an annual capacity of 360,000 Tons Steel Capacity and 1,000,000 m² Enclosure Output. Certifications include ISO9001, ISO14001, ISO45001, CE (EN1090), SGS, BV, and the Italy Welding Procedure Qualification. Bridge and infrastructure projects have been delivered to 50 Countries Covered across Europe, the Middle East, Southeast Asia, Africa, and the Americas, with 2,000+ Completed Projects worldwide.
Engineering & Installationtion
Design: Our bridge engineering team provides complete structural calculations, load ratings, and erection plans compliant with your local bridge design code (GB, AASHTO, Eurocode, or BS).
Manufacturing: Shop-fabricated modules with ±2mm tolerance. Complete NDT documentation and material traceability included with every shipment.
Installation: Erection sequence drawings, lifting plans, and on-site engineer supervision available for spans above 30m.
After-sales: 30-year design life guarantee, 2-year workmanship warranty, and ongoing structural health monitoring consultation.
FAQ
Q: What span lengths can you manufacture?
A: Single spans from 20m to 80m. For longer crossings, we design multi-span continuous girder or arch configurations with expansion joints.
Q: What bridge design codes do you comply with?
A: We engineer to Chinese GB 50009/50017, AASHTO LRFD, Eurocode EN 1991/1993, or British Standards BS 5400, depending on your project location.
Q: Can you provide shop drawings and calculation reports for our local review?
A: Yes. We deliver stamped structural calculation reports, material specifications, weld maps, NDT reports, and full shop drawings for your reviewing authority.
Q: How are bridge modules shipped?
A: Segments are limited to 12m × 3.2m for standard 40ft container loading. Oversized segments can be shipped via 40ft OT containers or breakbulk vessels.
Q: Do you offer on-site installation supervision?
A: Yes. For bridges above 30m span, we can dispatch qualified engineers to supervise erection, welding, and final inspection at your site.
Q: Can I request OEM manufacturing?
A: Yes. We offer full OEM/ODM services including custom branding on components, packaging, and documentation.
