Steel Hangar Building Design for Aviation and MRO Facilities
When an airport operator, MRO (maintenance, repair, and overhaul) company, or private aviation developer searches for steel hangar building, the underlying need is for a clear-span structure that accommodates aircraft wingspans, tail heights, and maintenance access requirements. Jidian Construction Materials Co., Ltd. engineers and fabricates steel hangar buildings from its 360,000-ton-per-year plant in Xiamen, China, with 2,000+ projects delivered across 50+ countries. The company holds China's highest Steel Structure Manufacturing Special Level Qualification and is certified to ISO 9001, CE (EN 1090), SGS, and BV standards.
This guide is written for the aviation facility buyer who must specify a hangar that houses specific aircraft types, supports maintenance equipment, meets fire and safety regulations, and protects multi-million-dollar aircraft for decades. We cover clear-span truss design for aircraft clearance, hangar door systems and tail clearance, fire suppression for aircraft hangars, lighting and access platform engineering, utility distribution for MRO operations, foundation design for hangar door tracks, project delivery, supplier evaluation, and common specification errors unique to aviation facilities.
Clear-Span Truss Design for Aircraft Wing and Tail Clearance
The defining structural feature of a steel hangar is the clear span between columns. Aircraft wingspans range from 12m for a business jet to 36m for a narrow-body airliner, and the hangar must clear the entire wingspan plus the tail height without intermediate columns that would block aircraft movement. Jidian engineers clear-span truss frames up to 60m for single-bay hangars and multi-span frames up to 120m for wide-body hangars, with intermediate columns positioned outside the aircraft envelope so they do not interfere with maintenance access.
The roof truss depth is determined by the span and the load. A 60m clear span typically requires a truss depth of 3-4m at the ridge, which is incorporated into the roof structure above the hangar floor. The truss is designed to carry the roof load, the sprinkler system, the lighting, and the crane or hoist loads used for engine removal and component handling. The bottom chord of the truss is set above the tallest aircraft tail height plus clearance for door operation and overhead services.
The truss geometry is chosen for the specific hangar operation. A parallel-chord truss provides constant internal clearance, which is suitable for hangars that house multiple aircraft types. A pitched-chord truss increases clearance at the center, which is used for hangars that house a single large aircraft. The engineering team models the aircraft envelope, the door operation, the crane travel, and the roof structure together so the hangar clears the aircraft without unnecessary height or steel tonnage.
Hangar Door Systems and Tail Clearance Engineering

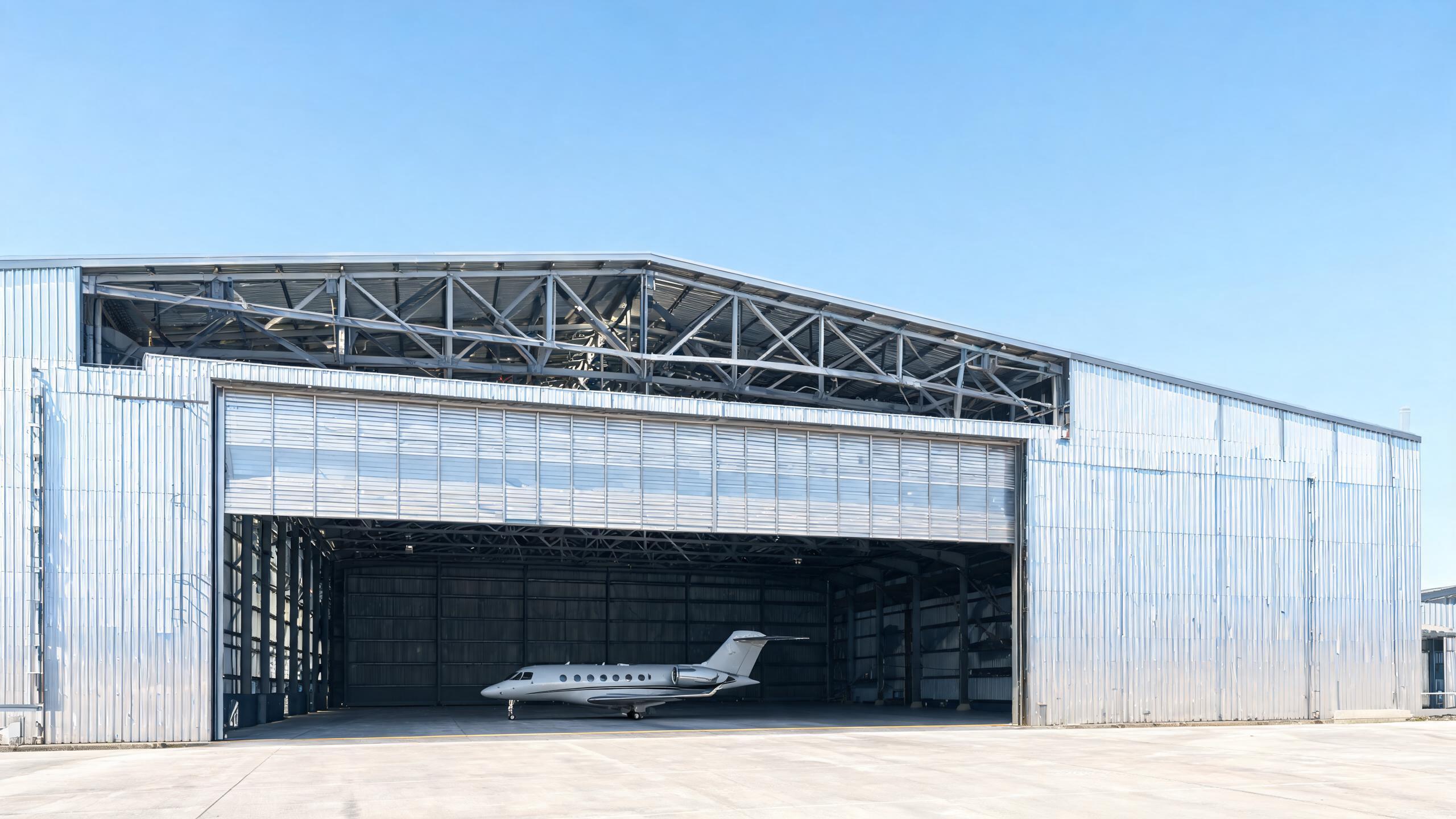

The hangar door is the largest moving component in the building and a defining engineering element. Sliding hangar doors operate on a ground track or an overhead track, opening horizontally to the full width of the hangar. The door height must clear the tallest aircraft tail that will enter the hangar, which can be 8-14m for narrow-body and wide-body aircraft. The door is engineered as part of the structural frame, with the door head beam sized to carry wind load when the door is open and the door columns designed to guide the door panels.
Fabric sliding doors are an alternative for very wide hangars or for hangars that need maximum opening width. A fabric sliding door uses a tensioned fabric membrane on a structural frame, which is lighter and more economical than a steel panel door for very large openings. The fabric door is engineered for the local wind load and is coordinated with the structural frame so the door track and head beam loads are included in the calculations.
The door opening sequence matters in a multi-panel sliding door. The panels stack against each other when open, and the stacking space must be accounted for in the building length. A hangar with a 60m door opening and 6 panels of 10m each needs 50m of stacking space when one panel is open, so the building must be 110m long to provide a 60m clear opening. The engineering team coordinates the door panel count and the stacking space with the building length so the hangar provides the operational clear opening it needs.
Fire Suppression Systems for Aircraft Hangars
Aircraft hangars have unique fire protection requirements because they house aircraft fuel systems, maintenance chemicals, and multi-million-dollar assets. The fire suppression system for a hangar is governed by NFPA 409, which classifies hangars by size and specifies the foam and sprinkler protection required. Group I hangars (over 3,700 m²) require foam-water deluge systems; Group II hangars (1,400-3,700 m²) require low-level foam or overhead foam-water sprinklers; Group III hangars (under 1,400 m²) may use conventional sprinkler systems.
The foam suppression system is engineered into the structural frame from the start. The deluge valves, foam tanks, piping, and discharge nozzles are supported on the structural frame, with their loads included in the calculations. The foam tank is a large vessel that may be mounted on a platform or on the ground adjacent to the hangar, and its weight and containment are coordinated with the foundation design. The piping runs through the truss space, with brace locations coordinated with the truss geometry so the piping does not interfere with the crane or the door operation.
The fire water supply for a hangar foam system is far larger than for a standard industrial building. A Group I hangar may require 1,000+ liters per minute of foam-water solution for 30 minutes or more, requiring a large fire water tank and pumps with redundant power supply. The structural frame supports the fire water tank and the pump house, and the water demand is coordinated with the site water supply and the municipal fire service.
Lighting and Access Platform Engineering for MRO
Aircraft maintenance requires high-intensity, shadow-free lighting throughout the hangar. The lighting design specifies illumination levels of 500-1000 lux at the floor level and at the aircraft access height, which is achieved with high-bay LED fixtures mounted on the truss bottom chord. The fixtures are positioned to eliminate shadows on the aircraft skin, which is critical for visual inspection and maintenance work. The electrical load and the fixture weights are included in the structural calculations.
Access platforms are engineered into the hangar frame for reaching the upper fuselage, the tail, and the engines. Suspended working platforms hang from the truss bottom chord, providing access to the upper aircraft surfaces without scaffolding. Telescopic work platforms on the floor provide adjustable-height access to the wings and engines. The platform loads, the travel envelope, and the support brackets are coordinated with the structural model so the platforms are safe and do not interfere with the crane or the door operation.
Cranes and hoists for engine removal and component handling are a standard feature of MRO hangars. An overhead bridge crane with a capacity of 10-50t spans the hangar, running on runway beams supported on the hangar columns. The crane runway is engineered into the structural frame, with the runway beams sized for the crane wheel loads, the lateral forces from crane travel, and the fatigue from the crane duty cycle. The crane capacity must be specified during the engineering phase because retrofitting a heavier crane later is expensive.
Utility Distribution for Maintenance Operations
Aircraft MRO hangars require extensive utility distribution: compressed air for pneumatic tools, electrical power for ground support equipment, process water for washing and testing, fuel and oil drainage systems, and data connections for diagnostic equipment. The structural frame is designed to carry these utilities: compressed air lines on wall brackets, electrical busways or cable trays on the truss, process water pipes on hangers, and fuel drainage trenches in the floor slab. The engineering team coordinates all utility routes with the structural model so brackets, hangers, and penetrations are planned.
Ground power units (GPUs) supply electrical power to the aircraft during maintenance. The GPU can be a fixed unit mounted on a pedestal or a mobile unit that plugs into floor receptacles. The electrical distribution for the GPU system is routed through the structural frame, with floor-mounted receptacles positioned at the aircraft parking locations. The electrical load is coordinated with the building power supply and the emergency power system, so the aircraft can be powered during a utility outage.
Environmental control is another utility that the hangar must support. Aircraft maintenance often requires the hangar to be heated or cooled, and the ventilation system must handle fumes from solvents, fuels, and paints. The HVAC ductwork is supported on the structural frame, and the exhaust system is coordinated with the fire suppression system so it does not interfere with the foam or sprinkler operation. The floor drainage system is designed to separate oil and fuel runoff from stormwater, preventing environmental contamination.
Foundation Design for Hangar Door Tracks
The hangar door track is a critical foundation element. The ground track for a sliding door must be perfectly level and aligned for the door to operate smoothly, and it must resist the uplift and lateral forces from wind load on the open door. The foundation for the door track is a reinforced concrete beam that runs the full width of the hangar, sized for the soil conditions and the door loads. Jidian provides the door track foundation design including the track beam section, the anchor bolt layout, and the tolerance requirements.
The hangar floor slab must support the aircraft wheel loads, the maintenance equipment, and the vehicle traffic. A narrow-body aircraft imposes point loads of 50-100 kN per wheel on the floor, which requires a slab of 200-300mm thickness with heavy reinforcement and a well-prepared sub-base. The floor is also designed for the jacking loads when the aircraft is jacked up for landing gear maintenance, which can impose concentrated loads of 200+ kN at the jack points.
The foundation is coordinated with the structural frame. The column foundations are designed for the frame reactions, including wind uplift and seismic loads. The door track foundation is designed for the door loads and the wind load on the open door. The floor slab is designed for the aircraft and equipment loads. All three foundation elements are coordinated in the structural model so they work together and the hangar operates as a system.
Project Delivery and Erection of Steel Hangar Buildings
The timeline for a steel hangar building follows the same sequence as other industrial steel buildings, but with a longer fabrication period due to the truss complexity. Engineering and design: 10-15 working days, free of charge, producing stamped structural calculations, 3D models, and shop drawings. Production: 35-60 days for a hangar with trusses, due to the specialized welding and assembly of the truss members. Shipping: 7-14 days to Southeast Asia, 18-28 days to the Middle East and Oceania, 25-45 days to Africa, 30-40 days to Latin America. Erection: 20-40 days for a hangar, due to the truss assembly and the door installation. Total project timeline: typically 90-150 days for a standard hangar.
The trusses are a critical fabrication item. Each truss is welded and assembled in the factory, with the chord and web members cut on CNC plasma lines to ±1mm and welded on automated SAW lines. The truss is then inspected, with 100% UT of full-penetration welds per GB/T 11345. For shipping, the truss may be split at a designed splice location if it exceeds the 40ft container envelope, with the splice designed to transfer the full load when bolted together on site.
Erection of a hangar truss requires a temporary support or a crane lift. A truss spanning 60m is too heavy to lift as a single piece with a standard mobile crane, so it may be assembled on the ground and lifted into position, or assembled in the air with temporary supports. The erection method is planned during the engineering phase, with the lifting points, the temporary supports, and the crane capacity specified in the erection plan. Jidian dispatches a qualified engineer to supervise hangar erection for structures above 2,000 m².
Evaluating Steel Hangar Building Suppliers
Selecting a supplier for a steel hangar requires verifying experience with clear-span truss design and aviation facilities. Ask for the structural calculation report for a comparable hangar span; the report should show the truss design, the column reactions, the door head beam design, and the fire suppression system loads. Ask how the hangar door is engineered; the answer should reference door panel count, stacking space, track foundation design, and wind load on the open door.
Ask what fire suppression systems the supplier has coordinated with the structural frame; the answer should reference NFPA 409 classification, foam deluge system loads, piping support, and fire water tank capacity. Ask how the crane runway is designed for the MRO crane; the answer should reference runway beam sizing, column bracket reinforcement, and fatigue analysis. Ask for the fabrication equipment used; CNC plasma cutting, automated SAW welding, and AMADA drilling are what produce the tolerance that makes truss assembly possible.
Ask for the quality documentation that ships with the hangar. Mill certificates, weld maps, UT/RT/MT NDT reports, coating thickness records, structural calculations, and shop drawings should all be included. Ask for references from hangar projects, and verify the supplier's experience with the specific aircraft type and hangar classification that you are building. The documentation should demonstrate that the supplier has actually built and delivered hangars, not just industrial buildings that happen to have a large door.
Common Hangar Specification Errors
The most expensive hangar specification error is under-estimating the tail clearance. A hangar built to clear the aircraft height without accounting for the door head beam, the lighting, the sprinkler piping, and the crane travel will have insufficient clearance for one or more of these elements, requiring expensive modifications after construction. The clear height should be the tallest aircraft tail plus the door head beam depth plus the lighting and sprinkler clearance plus the crane travel envelope plus a small allowance, not just the tail height.
The second common error is under-specifying the fire suppression system. A hangar built without a foam deluge system or with an undersized fire water supply may fail to meet NFPA 409, preventing the hangar from being used for its intended aircraft type. The fire suppression system must be designed into the building from the start, with the foam tanks, piping, deluge valves, and fire water supply all coordinated with the structural frame and the foundation.
The third common error is ignoring the door stacking space. A hangar with a 60m door opening and 6 sliding panels needs 50m of stacking space when one panel is open, so the building must be 110m long. A hangar built without accounting for the stacking space will have a reduced clear opening, making it impossible to move aircraft of the intended wingspan into the hangar. The door panel count and the stacking space must be coordinated with the building length during the engineering phase.
FAQ
Q: What clear span can a steel hangar achieve?
A: Jidian engineers clear-span truss frames up to 60m for single-bay hangars and multi-span frames up to 120m for wide-body hangars.
Q: What tail height can the hangar accommodate?
A: The clear height is set by the tallest aircraft tail plus clearance for the door head beam, lighting, sprinkler piping, and crane travel.
Q: What hangar door types are available?
A: Sliding steel panel doors for standard hangars and fabric sliding doors for very wide openings, with door height clearing the tallest aircraft tail.
Q: What fire suppression is required for aircraft hangars?
A: NFPA 409 governs hangar fire protection; Group I requires foam-water deluge, Group II requires low-level foam or overhead foam-water sprinklers.
Q: Can the hangar carry an overhead crane?
A: Yes. Bridge cranes of 10-50t are engineered into the hangar frame with runway beams, column brackets, and bracing designed as an integrated system.
Q: What lighting levels are needed in a hangar?
A: 500-1000 lux at floor level and aircraft access height, achieved with high-bay LED fixtures on the truss bottom chord, positioned to eliminate shadows.
Q: How long does it take to build a steel hangar?
A: 10-15 days engineering, 35-60 days fabrication, 7-45 days shipping, 20-40 days erection; total 90-150 days for a standard hangar.
Q: What utilities does the hangar frame support?
A: Compressed air, electrical power for GPUs, process water, fuel drainage, HVAC ductwork, and data connections, all coordinated with the structural model.
Q: What documentation ships with a hangar building?
A: Mill certificates, weld maps, UT/RT/MT NDT reports, coating records, structural calculations, truss shop drawings, door shop drawings, and assembly drawings.
Q: How is the hangar door track foundation designed?
A: A reinforced concrete beam runs the full hangar width, sized for soil conditions, door loads, and wind uplift, with level and alignment tolerances specified.
