Prefabricated Steel Structure Warehouses: Engineering and Procurement Guide
When procurement managers, logistics developers, and industrial project owners search for steel warehouse construction, they need a manufacturer that delivers complete prefabricated warehouse systems-from structural design through factory fabrication to bolted on-site assembly. A prefabricated steel structure warehouse is not simply a collection of steel beams and panels; it is an engineered building system where every component is designed, fabricated, and documented to work together. Jidian Construction Materials Co., Ltd. manufactures prefabricated steel structure warehouses from its facility in Xiamen, Fujian, China. The company holds the China Steel Structure Manufacturing Special Level Qualification-the highest grade in China's fabricator classification-and has an annual steel capacity of 360,000 tons plus 1,000,000 m² of enclosure system output. With 2,000+ completed projects across 50+ countries, Jidian delivers portal frame warehouses, light steel frame structures, and multi-span distribution centers using Q345B/Q355B welded H-section steel, shop-fabricated to ±2mm tolerance and shipped with complete documentation from Xiamen port.
What Makes a Warehouse 'Prefabricated': Understanding the PEB Approach
The term 'prefabricated' in steel structure warehouses refers to the pre-engineered building (PEB) approach, where the entire structure is designed and fabricated in a factory environment before being shipped to the construction site for bolted assembly. This differs fundamentally from conventional construction where steel is cut and welded on site. The PEB approach offers several advantages: factory-controlled quality (welding performed in controlled conditions with automated equipment, not subject to weather), precision fabrication (CNC cutting and drilling to ±2mm tolerance vs. manual site fabrication), faster construction (50% faster than conventional-method components arrive ready to bolt up), reduced site labor (no specialized welding teams needed), and complete documentation (every component is traceable from mill certificate through fabrication to final inspection). For procurement teams evaluating prefabricated steel structure warehouse suppliers, the key question is whether the manufacturer truly engineers and fabricates the complete building system in-house, or simply resells standard steel sections. Jidian's in-house engineering team, production lines, and quality control system ensure that every warehouse is a purpose-built building system, not a kit of generic parts.
Prefabricated Steel Warehouse Product Range
Jidian manufactures several types of prefabricated steel structure warehouses, each engineered for specific storage applications and span requirements:
| Warehouse Type | Main Steel | Clear Span | Insulation Option | Typical Use |
|---|---|---|---|---|

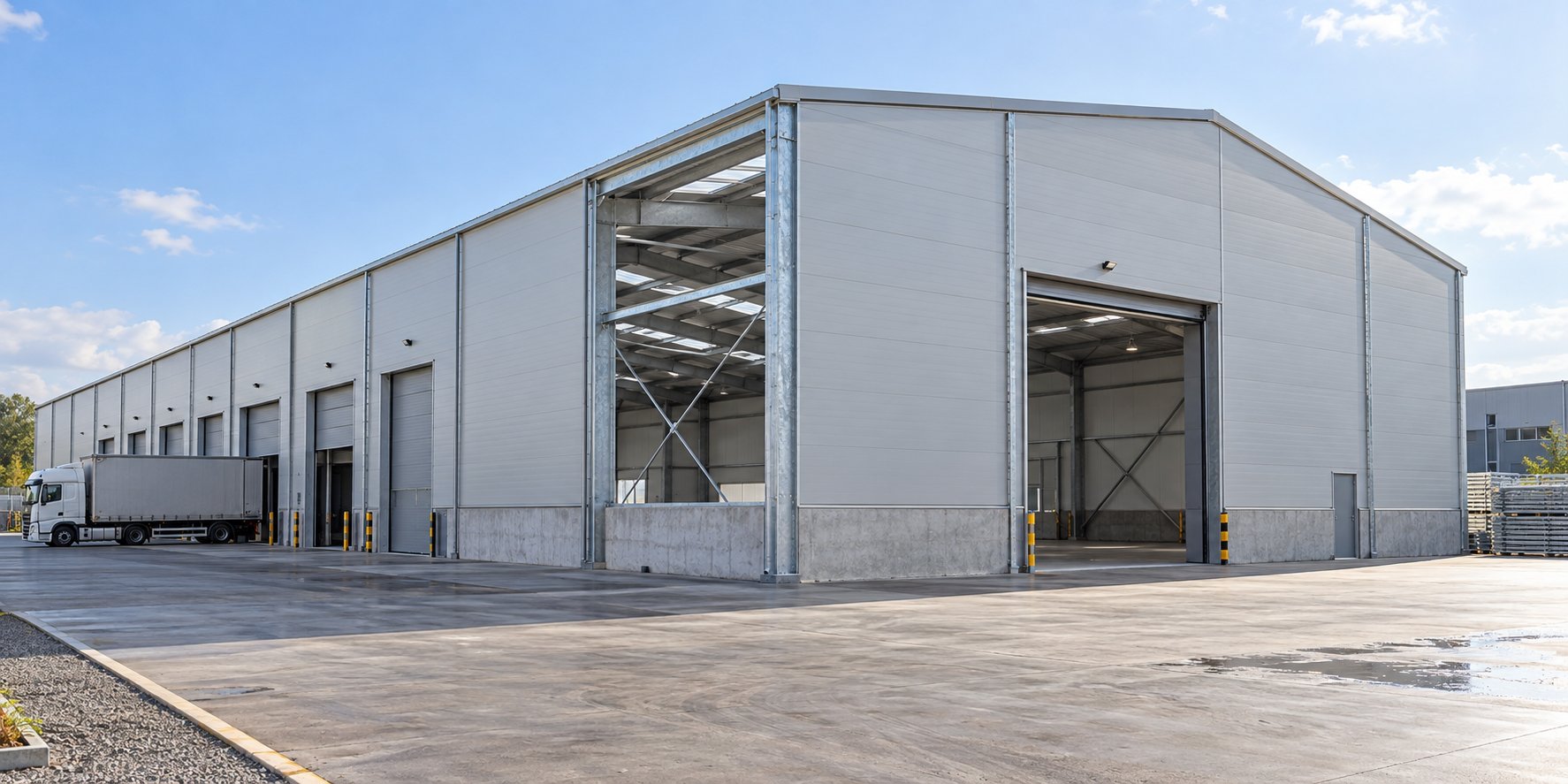

| Portal frame warehouse | Q345B/Q355B H-section | 15–36m | Optional | Logistics, general storage |

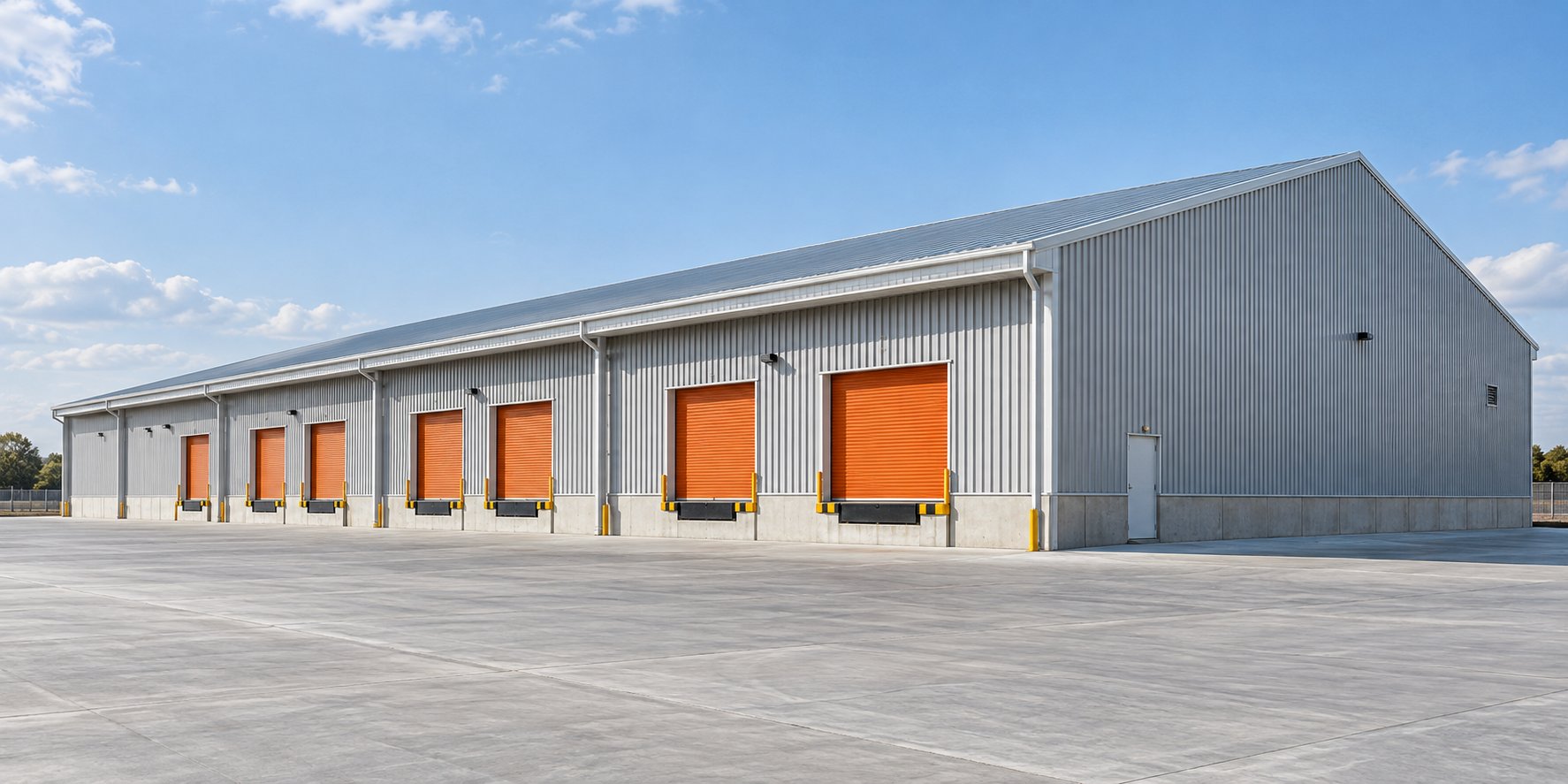

| Light steel frame warehouse | Q235/Q345 cold-formed C/Z | 12–24m | Optional | Small storage, budget projects |

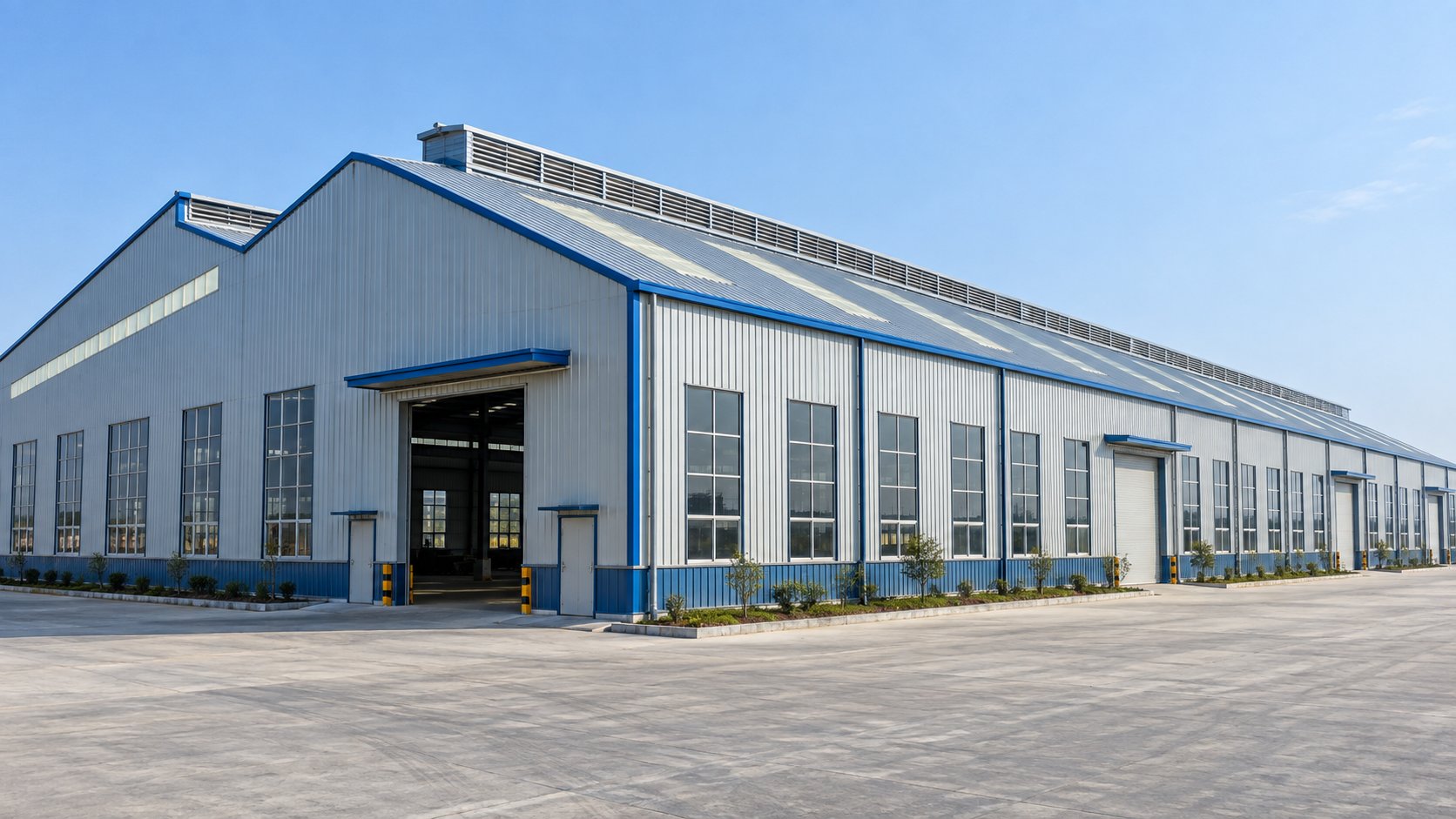

| Multi-span warehouse | Q345B/Q355B H-section | 2–5 bays × 15–36m | Per-bay option | Large distribution hubs |
| Crane-ready warehouse | Q345B/Q355B H-section | 15–36m | Optional | Manufacturing with material handling |

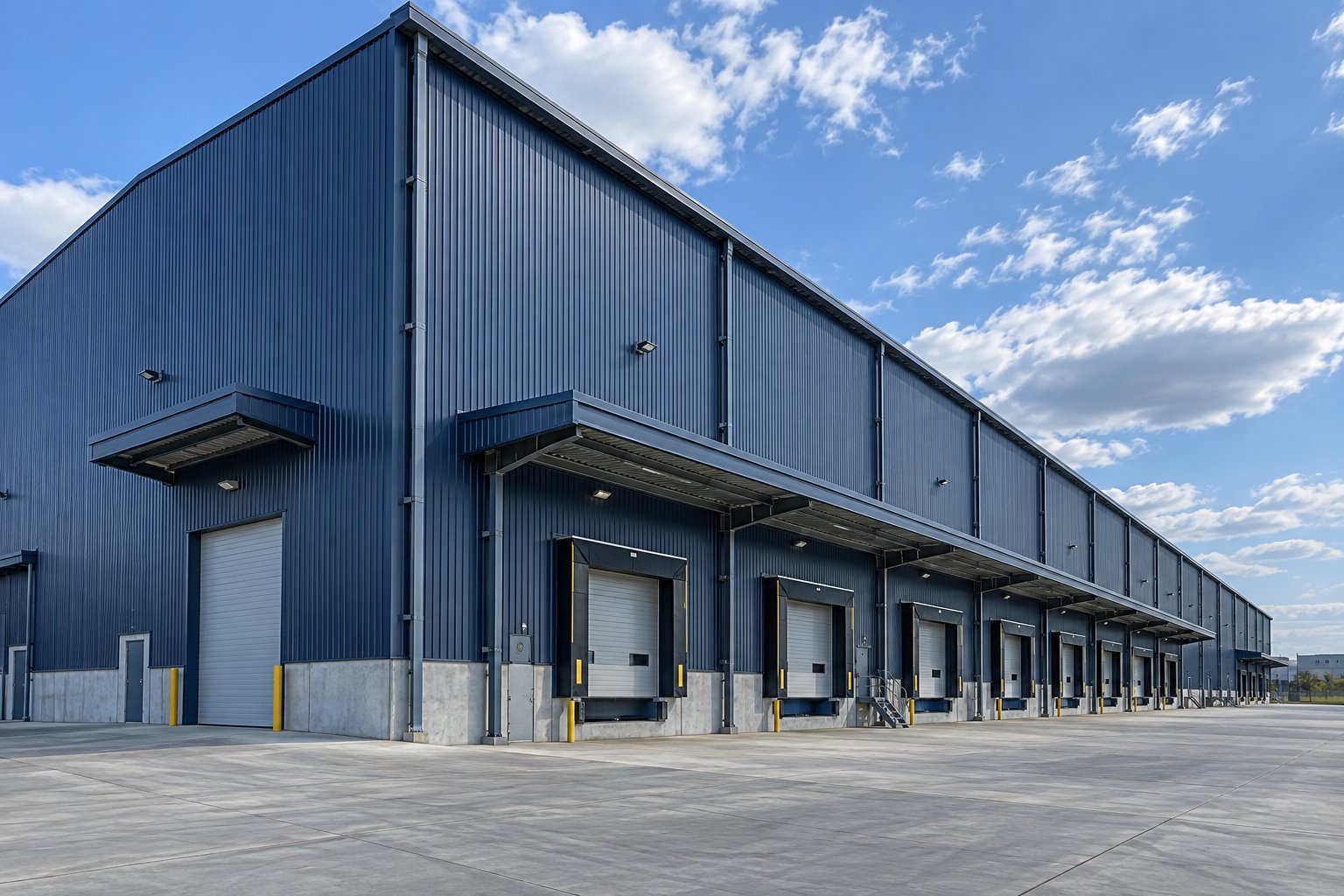

Each warehouse type is custom-engineered to your specified dimensions, with options for crane systems, mezzanine floors, insulated cladding, ventilation systems, and specific door configurations. The key product lines include the Prefabricated construction portal frame warehouse for standard logistics applications and the Light steel frame metal structure warehouse for smaller or budget-sensitive projects.
Structural Design Parameters for Prefabricated Warehouses
Structural design parameters define how the warehouse will perform under loads. Jidian engineers every prefabricated steel structure warehouse to the following parameters, customized based on your project location and operational requirements:
- Live load: Roof live load 0.5 kN/m² standard, upgradable for snow or maintenance access.
- Wind load: Standard 0.5–0.6 kN/m² (≈120–140 km/h). Coastal and typhoon-prone regions upgraded to 0.7–1.0 kN/m² with additional bracing and reinforced connections.
- Snow load: Standard 0.5 kN/m², upgradable to 1.5 kN/m² for heavy snow regions. Roof pitch, member sizes, and bracing adjusted accordingly.
- Seismic design: Grade 8 seismic intensity with ductile steel connections providing energy dissipation during seismic events.
- Crane load: 5–32 ton overhead crane capacity, with runway beams and column brackets pre-engineered into the structural design.
- Eave height: 6–12m standard, accommodating varying door heights, racking systems, and crane clearance requirements.
Provide your local wind/snow/seismic data and applicable design code during inquiry. The engineering team produces stamped structural calculation reports compliant with your governing code-GB 50009/50017, AASHTO LRFD, Eurocode EN 1991/1993, or BS 5400-free of charge before production.
Fabrication Equipment and Production Precision
The quality of a prefabricated steel structure warehouse depends directly on the fabrication equipment used to produce its components. Jidian's manufacturing facility includes:
| Equipment | Origin | Function | Accuracy |
|---|---|---|---|
| Cross-column production line | Germany & Italy | Welds H-section columns and beams | Web height up to 1,500mm |
| CNC plasma cutting | - | Plate preparation for base plates, stiffeners | ±1mm cut accuracy |
| Automated SAW welding | - | Full-penetration welds on primary members | Consistent bead quality |
| AMADA secondary processing | Japan | Drills bolt holes | ±2mm positioning |
| Shot blasting | - | Surface preparation before galvanizing/painting | Sa 2.5 (ISO 8501-1) |
This equipment lineup ensures components arrive on site ready for bolted assembly-no cutting, drilling, or reaming required. A standard 1,500 m² prefabricated warehouse can be erected in 10–15 days with a crew of 8–12 workers.
Mezzanine Floor Integration for Two-Level Storage
Many warehouse projects require mezzanine floors to maximize vertical storage space. Jidian pre-engineers mezzanine floor systems into the warehouse structural design, using composite steel-deck floors that support live loads of 500–2,000 kg/m². The mezzanine is integrated with the primary steel frame-floor beams connect to the main columns at the designated level, and vertical load paths are engineered into the column design. Key considerations for mezzanine integration include: column reinforcement at mezzanine connection points (additional stiffeners and web plates), floor deck selection (composite steel deck with concrete topping, or checker plate for lighter loads), deflection control (floor deflection limited to L/360 for storage applications), and access planning (stairways, material lifts, and conveyor openings). Specify your mezzanine requirements during the design phase. Retrofitting a mezzanine into an existing warehouse is significantly more expensive and structurally complex than integrating it during the original design.
Door and Loading Dock Configurations

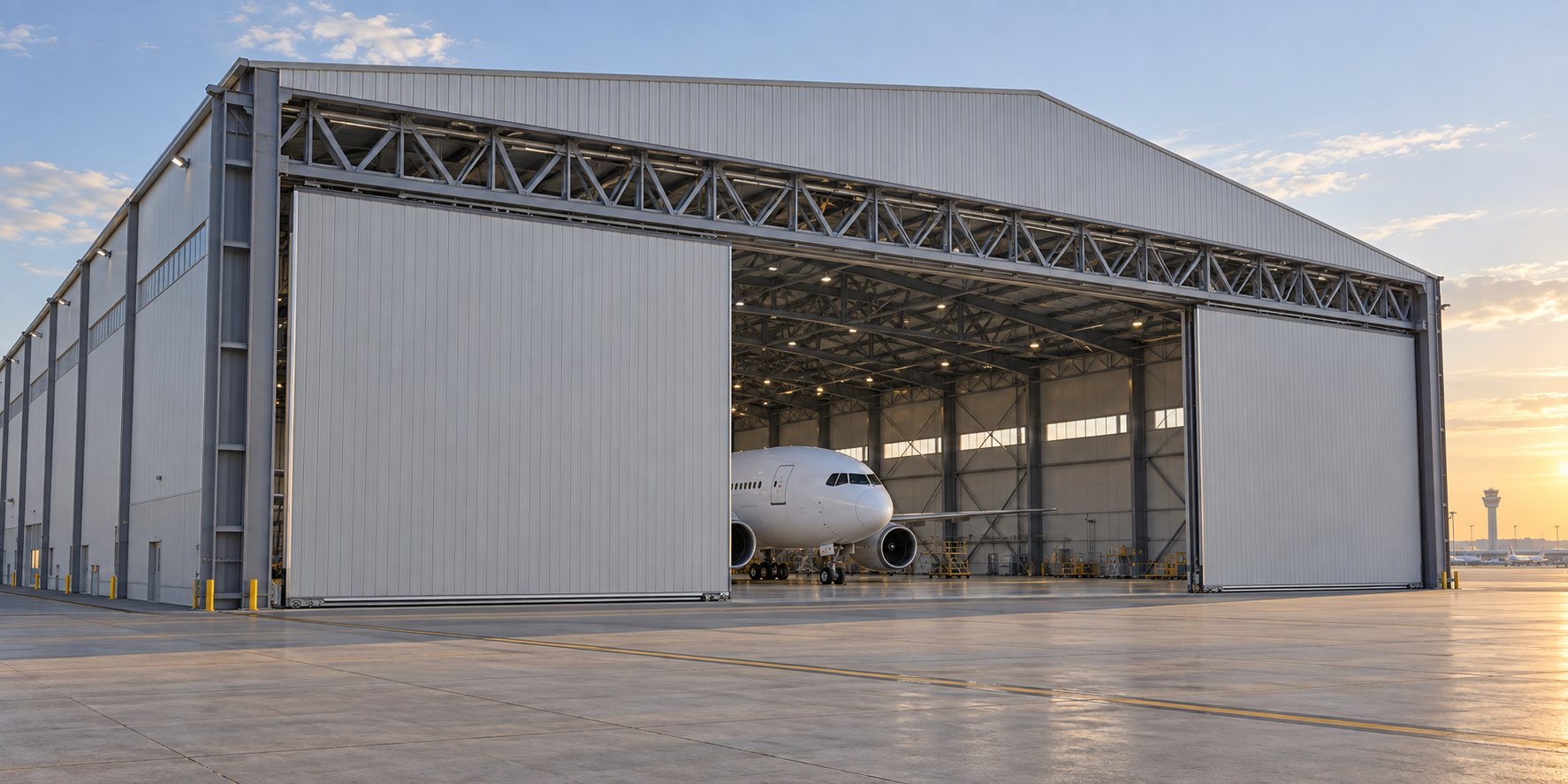

Warehouse doors and loading docks are critical for operational efficiency. Jidian pre-engineers door and dock openings into the structural design, ensuring adequate headers, lintels, and structural reinforcement at openings. Common configurations include: sliding doors (2–6m wide, manual or electric operation, suitable for equipment and vehicle access), roller shutter doors (3–5m wide × 4–5m high, electric operation, for loading dock access), sectional overhead doors (insulated, for temperature-controlled warehouses), and hangar doors (sliding or bi-folding, for large equipment access). Loading dock design includes dock bumper supports, dock leveler pit dimensions, and dock light mounting points. Specify your door types, sizes, and quantities during the design phase. The structural engineering team coordinates opening sizes with the cladding system to ensure weatherproofing and structural integrity at all door locations.
Design Code Compliance for International Warehouse Projects
Prefabricated steel structure warehouses must comply with the design code applicable to the project location. Jidian engineers structures to Chinese GB 50009/50017 (load codes and steel structure design codes-standard for domestic projects and many Belt and Road countries), AASHTO LRFD (for US and international projects), Eurocode EN 1991/1993 (actions on structures and design of steel structures-required for EU and many international projects including Australia and New Zealand), and British Standards BS 5400 (used in Commonwealth countries). For African markets, Jidian provides structures compliant with local building codes and French-language documentation for francophone countries. The engineering team provides stamped structural calculation reports, connection designs, and material specifications compliant with your local building code-free of charge before production. This documentation is essential for building permit applications, authority approvals, and insurance requirements.
Quality Control, NDT, and Documentation for Prefabricated Warehouses
Jidian's quality control system is certified to ISO 9001. Welding procedures are qualified to ISO 15614-1, and all welders hold ISO 9606 certifications. The NDT protocol for prefabricated steel structure warehouses includes 100% ultrasonic testing (UT) on all full-penetration butt welds per GB/T 11345, 10–20% radiographic testing (RT) spot checks on critical welds, and magnetic particle inspection (MT) on all fillet welds at fatigue-critical details. Jidian also holds the Italy Welding Procedure Qualification Certificate, enabling CE-marked structural components per EN 1090-essential for building permit applications in EU jurisdictions. Each shipment includes a complete documentation dossier: mill certificates documenting chemical composition and mechanical properties, weld maps identifying every weld and its inspection status, UT/RT/MT NDT reports, coating thickness records, shop drawings, and structural calculation reports compliant with your governing design code.
Cost Factors and Budgeting for Prefabricated Steel Warehouses
Understanding cost factors helps procurement teams budget accurately for prefabricated steel structure warehouse projects. The main cost components include: steel tonnage (determined by span, height, wind/snow loads, and crane requirements-Q345B/Q355B H-section steel priced per ton), fabrication cost (cutting, welding, drilling, and surface treatment-priced per ton, varies with complexity), enclosure system (corrugated steel, PU/EPS panels, or rock wool panels-priced per m²), coating system (galvanizing is more expensive upfront but lower life-cycle cost than painting), hardware (bolts, nuts, washers, brackets-priced per set), packaging and shipping (containerized from Xiamen port-trade terms affect cost: FOB, CIF, or DDP), and foundation (constructed locally by your contractor-based on Jidian's foundation load schedule). Jidian provides a transparent price breakdown within 24 hours of design confirmation, with no hidden charges. Factory-direct pricing eliminates middleman markups of 15–30% that trading companies add.
Cooperation Process: From Warehouse Inquiry to Building Handover
- Inquiry: Provide warehouse type, dimensions, storage application, crane requirements, insulation needs, local wind/snow/seismic data, and applicable design code.
- Design: Structural calculations, 3D models, and shop drawings within 5–10 working days. Free of charge before production.
- Quotation: Detailed price breakdown including steel tonnage, fabrication, cladding, coating, and packaging. Within 24 hours of design confirmation.
- Production: 25–30 days from drawing sign-off for standard configurations. Weekly production photos shared.
- Quality control: UT, RT, MT, coating thickness, dimensional checks. Full documentation compiled.
- Packing and shipping: 40ft containers from Xiamen port. Complete documentation dossier included.
- Installation: Assembly drawings, connection sequence videos, on-site engineer supervision for warehouses above 2,000 m². Remote support for all projects.
FAQ
Q: What is the difference between a prefabricated steel structure warehouse and a conventional steel warehouse?
A: A prefabricated warehouse is entirely designed, fabricated, and inspected in a factory environment, then shipped for bolted assembly on site. Conventional construction involves cutting and welding steel on site, with quality dependent on field conditions and welder skill. Prefabrication offers superior quality control, faster construction, and complete documentation.
Q: What clear spans are available for prefabricated steel warehouses?
A: Portal frame warehouses offer 15–36m clear spans. Light steel frame achieves 12–24m. Multi-span configurations extend total width to 100+ meters with 2–5 bays.
Q: Can you add a mezzanine floor to a prefabricated warehouse?
A: Yes. Mezzanine floors with composite steel-deck construction support 500–2,000 kg/m² live load. The mezzanine is integrated into the structural design during the engineering phase, not retrofitted.
Q: What insulation options are available?
A: PU/EPS sandwich panels (50–100mm, thermal conductivity 0.022–0.038 W/m·K) for temperature-controlled storage, rock wool panels (A1 fire-resistant per GB 8624) for chemical and flammable goods, or corrugated steel sheeting for non-insulated warehouses.
Q: How long does fabrication and delivery take?
A: Fabrication: 25–30 days for standard configurations. Shipping from Xiamen: 7–14 days to Southeast Asia, 18–28 days to Middle East, 25–45 days to Africa, 30–40 days to Latin America.
Q: What design codes can you comply with?
A: GB 50009/50017 (China/Belt and Road), AASHTO LRFD (US), Eurocode EN 1991/1993 (EU/Australia/NZ), BS 5400 (Commonwealth). Stamped calculation reports provided free before production.
Q: Can the warehouse be relocated or expanded?
A: Yes. Bolted connections allow disassembly and relocation. Modular bay spacing (6–9m) allows length extension by bolting on additional bays without modifying the existing structure.
Q: What crane capacities can the warehouse support?
A: 5–32 ton overhead cranes. Runway beams and column brackets are pre-engineered into the structural design. Fatigue analysis for crane load cycles is included per CMAA or EN 13001.
Q: Do you provide on-site installation supervision?
A: For warehouses above 2,000 m², qualified engineers supervise erection. For smaller projects, assembly drawings, videos, and remote support are provided.
Q: What is included in the documentation dossier?
A: Mill certificates, weld maps, UT/RT/MT NDT reports, coating thickness records, shop drawings, structural calculation reports, and assembly drawings. Supports building permit applications and authority approvals.
