What Structural Steel Manufacturers Provide to Industrial Buyers
When industrial project developers and EPC contractors search for structural steel manufacturers, they need a source facility that transforms raw steel into load-bearing structural components—columns, beams, trusses, bracing, and connection assemblies—meeting international design codes and welding standards. Jidian Construction Materials Co., Ltd. operates as a structural steel manufacturer from Xiamen, Fujian, China, with 360,000 tons of annual steel processing capacity and the China Steel Structure Manufacturing Special Level Qualification. The manufacturing range includes welded H-section columns and beams (Q345B/Q355B), box columns, truss girders, and bridge girders (Q345qC/Q370qC per GB/T 714). Jidian participated in the formulation and review of China's national steel structure standards, bringing standard-author-level expertise to every project. Components are shop-fabricated to ±2mm tolerance on production lines imported from Germany, Italy, and Japan, with 100% UT weld inspection per GB/T 11345.
Manufacturing Capabilities: From Raw Steel to Finished Components
Structural steel manufacturing involves multiple processes, each requiring specialized equipment and qualified operators. Jidian's manufacturing chain includes:
- Steel plate cutting: CNC plasma cutting for base plates, stiffeners, connection plates, and gussets. Cut accuracy within ±1mm. Plates are prepared to exact dimensions before welding.
- H-section assembly and welding: The cross-column production line assembles steel plates into H-sections and welds them with automated submerged-arc welding (SAW). SAW delivers deep penetration and uniform bead quality for full-penetration welds.
- Box column manufacturing: The European longitudinal box production line fabricates welded box columns for multi-story buildings and heavy-load structures. Imported from Germany and Italy.
- Secondary processing: The AMADA line from Japan performs CNC drilling, milling, and tapping. Bolt-hole positioning accuracy of ±2mm ensures components align during bolted assembly without field reaming.
- Surface preparation and coating: Shot blasting to Sa 2.5 grade (ISO 8501-1) removes mill scale and rust. Hot-dip galvanizing at ≥275g/m² per ISO 1461, or multi-coat paint systems per project requirements.
This integrated manufacturing chain produces the full range of structural steel components under one roof, eliminating the quality variability and coordination cost of multi-supplier sourcing.
Steel Grades and Material Specifications
Structural steel manufacturers must work with steel grades appropriate to the application, load requirements, and service environment. Jidian primarily manufactures with:
| Steel Grade | Standard | Yield Strength | Typical Application |
|---|---|---|---|
| Q345B / Q355B | GB/T 1591 | 345–355 MPa | Columns, beams, general structures |
| Q235B | GB/T 700 | 235 MPa | Secondary members, bracing, purlins |
| Q345qC / Q370qC | GB/T 714 | 345–370 MPa | Bridge girders, low-temp toughness at -20°C |
| Cold-formed C/Z | GB/T 6725 | 235–345 MPa | Light steel frame purlins and girts |
Each steel batch arrives with mill certificates documenting chemical composition, mechanical properties, and impact test results. These certificates are part of the material traceability dossier included with every shipment, supporting building permit applications and authority approvals.
Welding Standards and Non-Destructive Testing
As a structural steel manufacturer, welding quality is Jidian's core competency. Welding procedures are qualified to ISO 15614-1, and every welder carries ISO 9606 certification. The NDT protocol for manufactured structural steel includes:
- Ultrasonic testing (UT): 100% of full-penetration butt welds on primary load-bearing members, per GB/T 11345. UT detects internal flaws—porosity, slag inclusion, lack of fusion—that visual inspection cannot identify.
- Radiographic testing (RT): 10–20% spot checks on critical butt welds, depending on structure type. RT provides a permanent film record of internal weld quality.
- Magnetic particle inspection (MT): Applied to all fillet welds at fatigue-critical details. MT detects surface and near-surface cracks.
- Visual and dimensional inspection: Every weld is inspected for bead profile, undercut, and dimensional accuracy against the welding procedure specification (WPS).
Jidian holds the Italy Welding Procedure Qualification Certificate, enabling CE-marked structural components per EN 1090. This certification is essential for European projects and many international jurisdictions requiring CE marking.
National Standard Co-Authorship: What It Means for Buyers
Jidian participated in the formulation and review of China's national steel structure standards and specifications. This involvement means that the company's engineering team possesses standard-author-level knowledge of design requirements, fabrication tolerances, welding acceptance criteria, and quality control protocols. For buyers, this translates to:
- Design optimization: Structures designed by engineers who understand the intent behind code provisions, not just the letter. This results in more efficient steel tonnage without compromising safety.
- Quality assurance alignment: Fabrication and QC processes aligned with the latest national standards. No ambiguity about acceptance criteria or documentation requirements.
- Code compliance confidence: When a building permit reviewer questions a design or detail, Jidian's engineers can explain the code basis with authority—reducing approval delays.
Products Manufactured for Industrial Applications
Jidian's structural steel manufacturing covers components for multiple industrial building types:

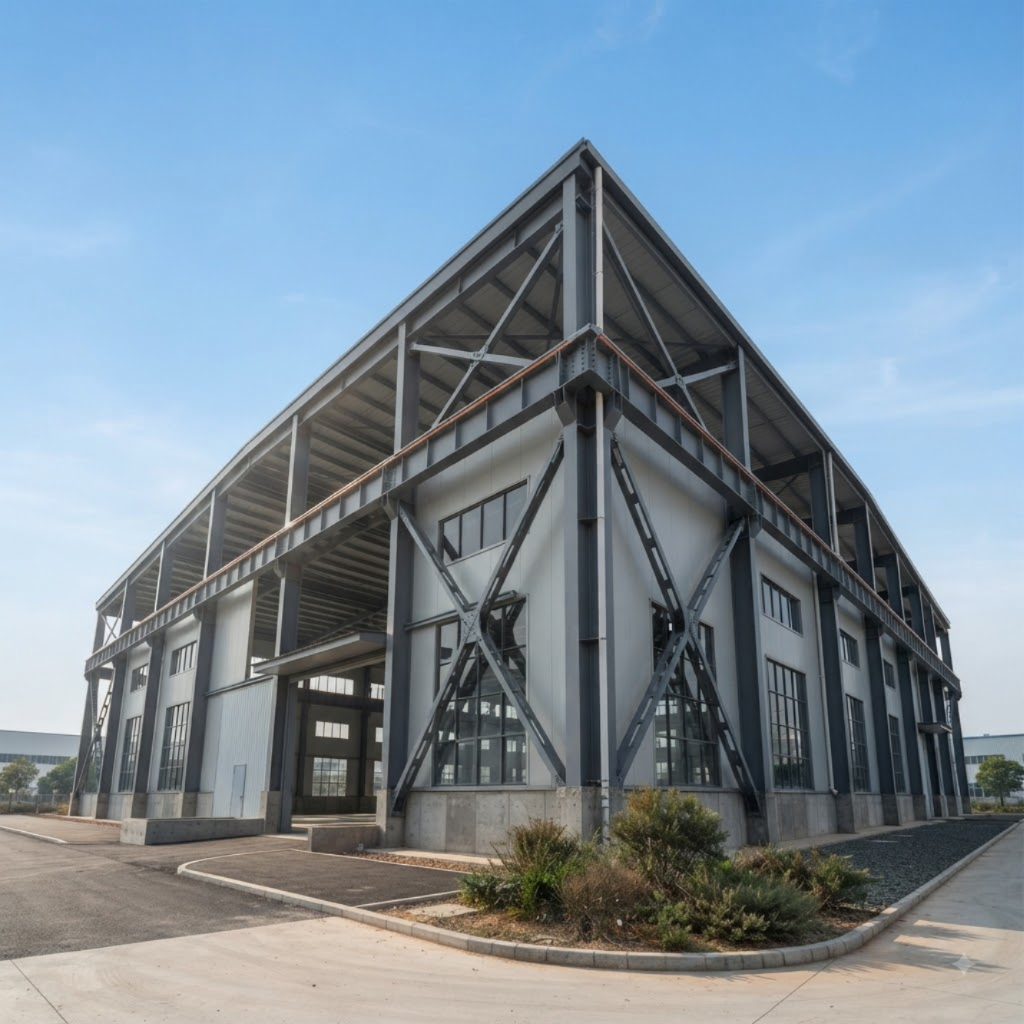

- Portal frame industrial workshops: Welded H-section columns and rafters, clear spans 15–36m, eave height up to 12m. Crane-ready columns for 5–32 ton overhead cranes. The most common industrial steel structure.
- Multi-span workshops: 2–5 bays, each 15–36m wide, with independent per-bay crane integration. Modular bay spacing (6–9m) allows future expansion.
- Crane steel structure workshops: Columns and crane runway beams pre-engineered for heavy-duty overhead cranes. Fatigue-rated welded connections per GB 50017 for cyclic crane loading.
- Warehouses: Portal frame warehouses for high-bay racking with eave heights up to 12m. Light steel frame warehouses for smaller spans and budget projects.
- Bridge structures: Modular steel girder and arch bridges with Q345qC/Q370qC bridge steel, 20–80m spans, shipped in 12m container-compatible modules.
Design Code Compliance and Engineering Documentation
Structural steel manufacturers must produce components compliant with the design code of the project location. Jidian engineers structures to:
- Chinese GB 50009/50017: Load codes and steel structure design codes. Standard for domestic projects and Belt and Road countries.
- AASHTO LRFD: Load and Resistance Factor Design for US and international bridge projects.
- Eurocode EN 1991/1993: Actions on structures and steel structure design. Required for EU and many international projects.
- British Standards BS 5400: Steel, concrete, and composite bridges. Commonwealth countries.
Specify your governing code during inquiry. The engineering team provides stamped structural calculation reports, connection designs, weld maps, and material specifications compliant with your local building code—free of charge before production.
Quality Control and Documentation Dossier
Every structural steel shipment from Jidian includes a complete documentation dossier:
| Document | Content | Purpose |
|---|---|---|
| Mill certificates | Chemical composition, mechanical properties | Material traceability |
| Weld maps | Weld locations, WPS references, welder IDs | Weld traceability |
| NDT reports | UT, RT, MT results per GB/T 11345 | Weld quality verification |
| Coating records | Galvanizing thickness, paint system records | Corrosion protection verification |
| Shop drawings | Component dimensions, bolt schedules | Assembly reference |
| Calculation reports | Structural calculations per governing code | Building permit application |
This dossier supports building permit applications, authority approvals, and long-term structural health monitoring at your destination.
Packaging, Shipping, and Container Loading
Structural steel components are bundled with steel straps and fabric-wrapped at ends to protect galvanized surfaces. Small parts go in iron boxes labeled with part numbers. Standard shipments use 40ft OT or HQ containers from Xiamen port. Component dimensions are engineered to fit standard container dimensions (12m × 2.35m × 2.39m) where possible, minimizing freight cost. Oversized truss segments ship via OT containers or breakbulk vessels.
Common Risks When Sourcing from Structural Steel Manufacturers
- Unverified manufacturing qualifications: Manufacturers without the Steel Structure Manufacturing Qualification may lack the equipment and processes for critical structural components. Always verify qualification level and equipment origin.
- Inadequate NDT coverage: Some manufacturers perform visual inspection only. For primary load-bearing welds, 100% UT per GB/T 11345 is the standard. Confirm NDT scope before ordering.
- Tolerance failures: Poor bolt-hole positioning causes assembly problems. Verify CNC drilling capability with ±2mm positioning accuracy.
- Material substitution: Some suppliers substitute lower-grade steel (Q235B) for specified Q345B/Q355B to reduce cost. Mill certificates must verify the steel grade for every batch.
- Missing documentation: Building permits require complete documentation. Confirm the manufacturer provides mill certificates, NDT reports, and structural calculations with every shipment.
FAQ
Q: What is your annual structural steel manufacturing capacity?
A: 360,000 tons per year, backed by the China Steel Structure Manufacturing Special Level Qualification—the highest grade in China's fabricator classification.
Q: Did Jidian participate in writing China's steel structure standards?
A: Yes. Jidian participated in the formulation and review of China's national steel structure standards and specifications, bringing standard-author-level expertise to every project.
Q: What steel grades do you manufacture with?
A: Q345B/Q355B welded H-section for primary members, Q235B for secondary members, and Q345qC/Q370qC bridge steel per GB/T 714 for bridge projects. Cold-formed C/Z-section for light steel frame.
Q: What welding certifications do you hold?
A: ISO 15614-1 welding procedures, ISO 9606 welder certifications, Italy Welding Procedure Qualification Certificate for CE marking per EN 1090.
Q: What NDT do you perform?
A: 100% UT on full-penetration butt welds per GB/T 11345, 10–20% RT spot checks, and MT on all fillet welds at fatigue-critical details.
Q: What fabrication tolerance do you achieve?
A: ±2mm on critical dimensions including column length, beam span, bolt-hole position, and connection plate alignment, using CNC drilling on the AMADA line from Japan.
Q: Do you provide structural calculations for building permits?
A: Yes. Stamped structural calculation reports, 3D models, and assembly drawings compliant with GB, AASHTO, Eurocode, or BS—free of charge before production.
Q: What is the typical production lead time?
A: 25–45 days from drawing sign-off, depending on project complexity and tonnage. Shipping from Xiamen port depends on destination.
Q: Do you offer on-site installation supervision?
A: Yes. For structures above 2,000 m², we dispatch qualified engineers. For smaller projects, assembly drawings, connection videos, and remote support are provided.
Q: What payment terms do you accept?
A: T/T (30% deposit, 70% before shipment) or L/C at sight. Alibaba Trade Assurance supported.
