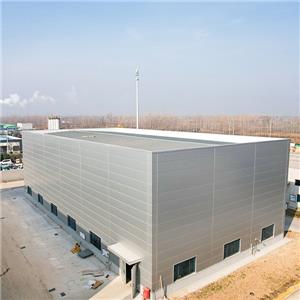

Portal frame galvanized industry steel workshop
Highlights
- Clear spans 15-36m, eave height up to 12m
- Overhead crane ready (5-32 ton capacity)
- Rock wool panels with ≥2hr fire resistance
- ±2mm fabrication tolerance, 100% UT on primary welds
- Epoxy zinc-rich primer, 20+ year protection
- Free structural calculations for building permits
Specifications
| Brand | Jidian Construction Materials Co., Ltd. |
|---|---|
| Product origin | Xiamen, Fujian, China |
| Building type | Portal frame construction |
| Main steel grade | Q345B/Q355B welded H-section |
| Max single span | Up to 36m |
| Eave height | 6-12m (up to 15m customizable) |
| Crane capacity | 5-32 tons (pre-engineered) |
| Roof live load | 0.5-0.7 kN/m² |
| Wind load | Up to 0.6 kN/m² (≈140 km/h) |
| Cladding options | Color steel plate, rock wool/PU sandwich panel, ALC panel |
| Surface treatment | Sa 2.5 blast + epoxy zinc-rich primer (2×75μm) + topcoat |
| Delivery time | 20-30 days after drawing confirmation |
| Supply capacity | 360,000 tons/year |
Product Detail

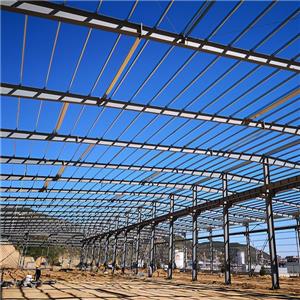

Why Industrial Workshops Need Portal Frame Steel Structures
Industrial facility managers face a recurring dilemma: concrete workshops take too long to build, limit future reconfiguration, and require heavy foundations that drive up cost. The portal frame galvanized industry steel workshop directly addresses these pain points. With clear spans from 15 to 36 meters and eave heights up to 12 meters, the structure accommodates overhead cranes (5-32 tons), production lines, and heavy machinery without interior columns obstructing workflow. Q345B/Q355B welded H-section columns and rafters are fabricated to tolerance within ±2mm, ensuring bolted connections align perfectly on site. For a typical 2,000 m² workshop, the complete steel frame erects in 25-30 days-roughly one-third the time of reinforced concrete construction-delivering measurable savings in labor, financing, and opportunity cost.
Product Advantages
• Overhead crane ready: Columns and runway beams are pre-engineered for crane capacities from 5 to 32 tons, with fatigue-rated welded connections per GB 50017.
• Multi-span capability: Continuous portal frames support spans of 15-36m per bay, with expansion joints for buildings over 90m in length.
• Fire-resistant cladding: Rock wool sandwich panels (100-150mm, fire resistance ≥2 hours) available for walls and roofs to meet industrial fire codes.
• Acoustic and thermal insulation: Polyurethane-edge rock wool panels achieve thermal conductivity ≤0.040 W/m·K, reducing HVAC energy costs.
• Polyurethane sealant at panel joints prevents water infiltration and air leakage, maintaining interior climate integrity.
• Foundation flexibility: Bolted steel base plates adapt to independent, strip, or pile foundations depending on soil conditions.
Welding Qualification & Quality Controltrol
Our welding procedures are qualified to ISO 15614-1, and welders hold ISO 9606 certifications. Every primary load-bearing weld undergoes 100% ultrasonic testing (UT) per GB/T 11345, with radiographic testing (RT) on critical butt welds. CNC plasma cutting and automated submerged-arc welding (SAW) ensure dimensional precision at every stage. Surface preparation reaches Sa 2.5 (near-white metal blast) before epoxy zinc-rich primer (2×75μm) and topcoat application, delivering 20+ years of protection in industrial atmospheres.
About Jidian Construction Materials Co., Ltd.
Established in 2012, Jidian Construction Materials Co., Ltd. is a leading steel structure manufacturer headquartered in Xiamen, Fujian, China, with over 12 years of industry experience. Our production facility operates advanced heavy and light steel production lines plus sandwich panel lines, staffed by a dedicated engineering team. Annual capacity reaches 360,000 Tons Steel Capacity and 1,000,000 m² Enclosure Output. We hold ISO9001, ISO14001, ISO45001, CE (EN1090), SGS, and BV certifications, and are a Vice President unit of the China Steel Structure Association. Our workshop projects have been delivered to 50 Countries Covered across Europe, the Middle East, Southeast Asia, Africa, and the Americas, with 2,000+ Completed Projects worldwide.
Engineering & Installation Servicevice
Design: Our engineering team provides stamped structural drawings based on local wind, snow, and seismic codes. Free 3D models and load calculations included.
Manufacturing: CNC cutting, automated SAW welding, and robotic drilling ensure ±2mm tolerance. Production progress photos shared weekly.
Installation: Detailed assembly drawings, connection sequence videos, and on-site engineer supervision available for projects above 2,000 m².
After-sales: 24/7 response, 1-year structural warranty, lifetime technical support.
FAQ
Q: Can the workshop support overhead cranes?
A: Yes. Columns and crane runway beams are pre-engineered for 5-32 ton cranes. Simply specify your crane capacity and we will design the structure accordingly.
Q: What is the maximum building size you can manufacture?
A: Single spans up to 36m; multi-span buildings can extend to any length with expansion joints. Maximum eave height: 15m.
Q: Do you provide design calculations and drawings for building permits?
A: Yes. We provide complete structural calculation reports, assembly drawings, and material specifications suitable for local building permit applications.
Q: What is the delivery time and packaging method?
A: 20-30 days from drawing confirmation. Components are bundled with steel straps, small parts in iron boxes, shipped in 40ft OT or HQ containers.
Q: Can I request OEM manufacturing with my brand?
A: Yes. We offer OEM/ODM services including custom branding on components, packaging, and documentation.
Q: Do you provide samples for quality verification?
A: Yes. We can send steel samples and cladding panel samples by express for your quality verification before placing a bulk order.
