Prefabricated steel structure aircraft hangar
Highlights
- Clear spans 40-80m for wide-body aircraft accommodation
- Crane-ready columns for 10-50 ton overhead bridge cranes
- Sliding door integration up to 40m × 12m
- Aviation fuel and de-icing chemical resistant galvanizing
- Rock wool panels with ≥2hr fire resistance
- ISO 15614 welding qualified, Italy CE welding certificate
Specifications
| Brand | Jidian Construction Materials Co., Ltd. |
|---|---|
| Product origin | Xiamen, Fujian, China |
| Building type | Portal frame + truss hybrid |
| Main steel | Q345B/Q355B welded H-section + truss girder |
| Max clear span | Up to 80m |
| Eave height | 8-16m (customizable) |
| Crane capacity | 10-50 tons (pre-engineered) |
| Door opening | Sliding door up to 40m × 12m |
| Wind load | Up to 0.6 kN/m² (≈140 km/h) |
| Cladding options | Rock wool / PU sandwich panel, ALC panel |
| Surface treatment | Hot-dip galvanized ≥275g/m² (ISO 1461) |
| Delivery time | 30-45 days after drawing confirmation |
| Supply capacity | 360,000 tons/year |
Product Detail
Hangar Construction Challenges & Our Solutiontion
Aviation facility operators need hangars with massive clear spans to accommodate wide-body aircraft, yet traditional concrete and steel frame construction is slow, expensive, and limited in span capability. Our prefabricated steel structure aircraft hangar solves this with a portal frame and truss hybrid system achieving clear spans up to 80 meters-enough for two narrow-body aircraft side by side. The structure uses Q345B/Q355B welded H-section columns paired with truss roof girders, engineered to support 10-50 ton overhead bridge cranes for engine removal and maintenance. Galvanized steel components (≥275g/m² per ISO 1461) resist corrosion from aviation fuel and de-icing chemical exposure. Factory pre-fabrication with ±2mm tolerance reduces on-site erection to 30-45 days for a standard 3,000 m² hangar-a 50% time saving versus conventional construction.
Product Advantages
• Ultra-large clear span: Portal frame + truss hybrid achieves 40-80m column-free width, accommodating Boeing 737 to Airbus A320 wingspan with clearance.
• Crane integration: Columns and runway beams pre-engineered for 10-50 ton overhead cranes, supporting engine hoists and maintenance equipment.
• Sliding door system: Frame structure accommodates large industrial sliding doors up to 40m wide × 12m high for aircraft access.
• Fire-rated cladding: Rock wool sandwich panels (100-150mm, fire resistance ≥2 hours) available for walls and roofs to meet aviation facility fire codes.
• Aviation fuel resistance: Hot-dip galvanized surface treatment resists jet fuel, hydraulic fluid, and de-icing chemical corrosion.
• Acoustic insulation: Polyurethane-edge rock wool panels reduce engine test noise transmission by 25-30 dB.
Welding Qualification & Non-Destructive Testingting
Hangar structures demand the highest welding standards. Our shop holds the China Steel Structure Manufacturing Special Level Qualification. Welding procedures are qualified to ISO 15614-1, and all welders carry ISO 9606 certifications. For hangar columns and truss girders, 100% of full-penetration butt welds undergo ultrasonic testing (UT) per GB/T 11345, with 20% radiographic testing (RT) spot checks on critical connections. We also hold the Italy Welding Procedure Qualification Certificate, enabling CE-marked structural components for European aviation projects. Each shipment includes a complete material traceability dossier: mill certificates, weld maps, NDT reports, and coating thickness records.
Exhibition Track Record & International Projectsects
Jidian Construction Materials Co., Ltd. has showcased large-span structural solutions at major international exhibitions including the China Import and Export Fair (Canton Fair), Poland BUDMA, Mexico ExpoCIHAC, Chile Edifica, Pakistan Build Asia, Capac Expo Habitat (Panama), and BuildTech Asia (Singapore). These exhibitions connected us with aviation facility developers and government infrastructure buyers from the Middle East, Southeast Asia, and Latin America.
About Jidian Construction Materials Co., Ltd.
Founded in 2012 and headquartered in Xiamen, Fujian, China, Jidian Construction Materials Co., Ltd. is a leading steel structure manufacturer with over 12 years of industry experience. Our production facility operates advanced heavy and light steel production lines plus sandwich panel lines, staffed by a dedicated engineering team. Annual capacity reaches 360,000 Tons Steel Capacity and 1,000,000 m² Enclosure Output. We hold ISO9001, ISO14001, ISO45001, CE (EN1090), SGS, BV, and Italy Welding Procedure Qualification certifications, plus China's highest Steel Structure Manufacturing Special Level Qualification. Large-span public building projects have been delivered to 50 Countries Covered across Europe, the Middle East, Southeast Asia, Africa, and the Americas, with 2,000+ Completed Projects worldwide.ide.
Engineering & Installation Servicevice
Design: Our engineering team provides stamped structural calculations, crane load analysis, and door-opening structural reinforcement drawings compliant with your local building code.
Manufacturing: CNC cutting, automated SAW welding, and robotic drilling ensure ±2mm tolerance. Production progress photos shared weekly.

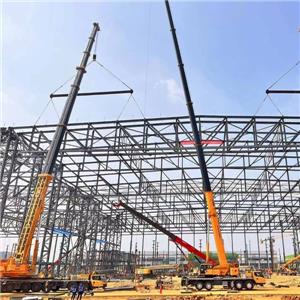

Installation: Erection sequence drawings, lifting plans, and on-site engineer supervision available for hangars above 2,000 m².
After-sales: 2-year structural warranty, 24/7 response, lifetime technical consultation.
Packaging & Deliveryvery
Steel components are bundled with steel straps and fabric-wrapped at ends; small parts are packed in iron boxes. Standard shipments use 40ft OT or 40ft HQ containers. Delivery time: 30-45 days after drawing confirmation.
FAQ
Q: What aircraft sizes can the hangar accommodate?
A: Clear spans from 40m to 80m accommodate aircraft from Cessna to Airbus A320 and Boeing 737. Provide your aircraft type and we will engineer the span accordingly.
Q: Can the hangar support overhead cranes?
A: Yes. Columns and crane runway beams are pre-engineered for 10-50 ton overhead bridge cranes for engine removal and maintenance.
Q: What is the delivery time?
A: 30-45 days after drawing confirmation for standard configurations. Large or complex hangars may require 45-60 days.
Q: Do you provide design calculations for building permits?
A: Yes. We deliver complete structural calculation reports, assembly drawings, and material specifications for local aviation authority and building permit applications.
Q: Can I request OEM manufacturing?
A: Yes. We offer OEM/ODM services including custom branding on components, packaging, and documentation.
Q: What are the payment terms?
A: T/T (30% deposit, 70% before shipment) or L/C at sight. Trade assurance supported via Alibaba.
Q: Do you provide samples for quality verification?
A: Yes. We can send steel samples and cladding panel samples by express for your quality verification before placing a bulk order.
